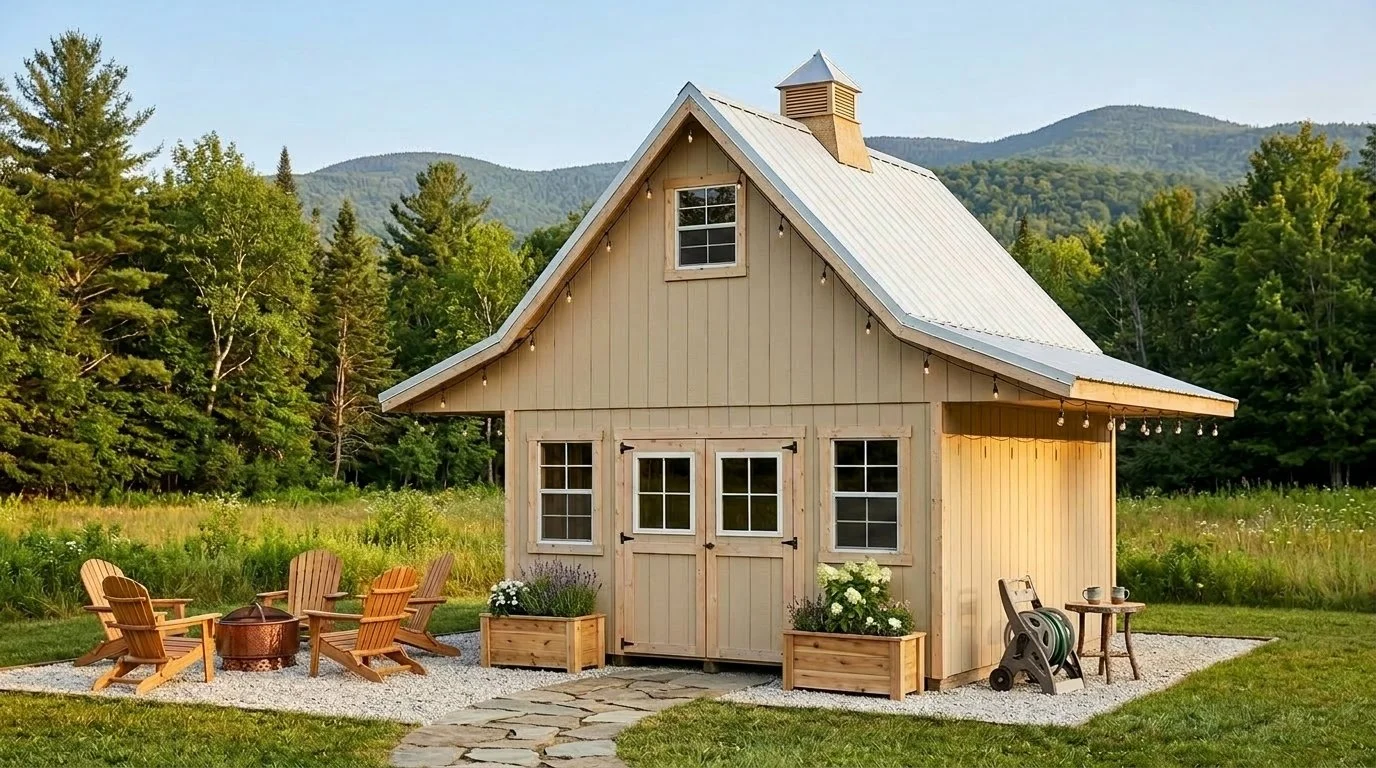

Our A-Frame takes our standard cabin layout and elevates it with a classic, steep 12/12 pitch roof. Complete with a 4-foot side porch and heavy-duty construction, it’s the ultimate retreat for lakeside weekends or overnight hunting trips.

Porch & Footprint

• Built-in Porch: Features an additional 4' side porch with a 4/12 roof pitch.

• Sizing Note: The 4' porch is added to the base width of your cabin (e.g., a 10’x16’ cabin has a total footprint of 14’x16’).

Heavy-Duty Framing & Floors

• Premium Flooring: 2″x6″ tongue-and-groove (T&G) treated floors.

• Tall Walls: 87” (7’ 3″) wall height for excellent headroom.

• Sturdy Studs: 16″ O.C. wall studs (on Premier, Vinyl Series, and Horizontal siding builds).

• Reinforced Openings: Headers above all doors for superior structural integrity.

Doors & Access

• Primary Entry: 32 ¾” single entry door located on the porch.

• Double Doors: 10’-16’ wide units include spacious 67”x 72″ double doors.

• Rugged Construction: All doors are double-framed and assembled with screws for maximum durability.

• Protected Thresholds: 3″ aluminum tread plates included in all doorways.

Roofing & Exterior Finishing

• Steep Roofline: Classic 12/12 roof pitch with a 7″ eave overhang.

• Premium Shingles: 30-year dimensional shingles over sturdy 5/8″ plywood roof sheathing.

• Weather Protection: Aluminum drip edge along all roof edges.

• Superior Airflow: Full ridge vent included standard.

• Elegant Trim: Beautiful 1″x6″ cedar fascia.

Make it uniquely yours. Browse all of our premium upgrade options below.

Compatible with our Premier, Pine, and Vinyl Builds

1. Choose Your Footprint We build to suit your space. Choose your preferred width, and customize the length to fit your exact needs (smaller lengths like 10' x 12' are always available):

• 10-Foot Wide Models: Available in lengths up to 20' (Max Peak Height: 14’2”)

• 12-Foot Wide Models: Available in lengths up to 20' (Max Peak Height: 15’2”)

• 14-Foot Wide Models: Available in lengths up to 20' (Max Peak Height: 16’2”)

• 16-Foot Wide Models: Available in lengths up to 24' (Max Peak Height: 17’2”)

2. Choose Your Wall Height No matter which footprint you choose, you have full control over your interior headroom. All of our sizes can be customized with your choice of:

• 7-Foot Walls

• 8-Foot Walls

• 9-Foot Walls
